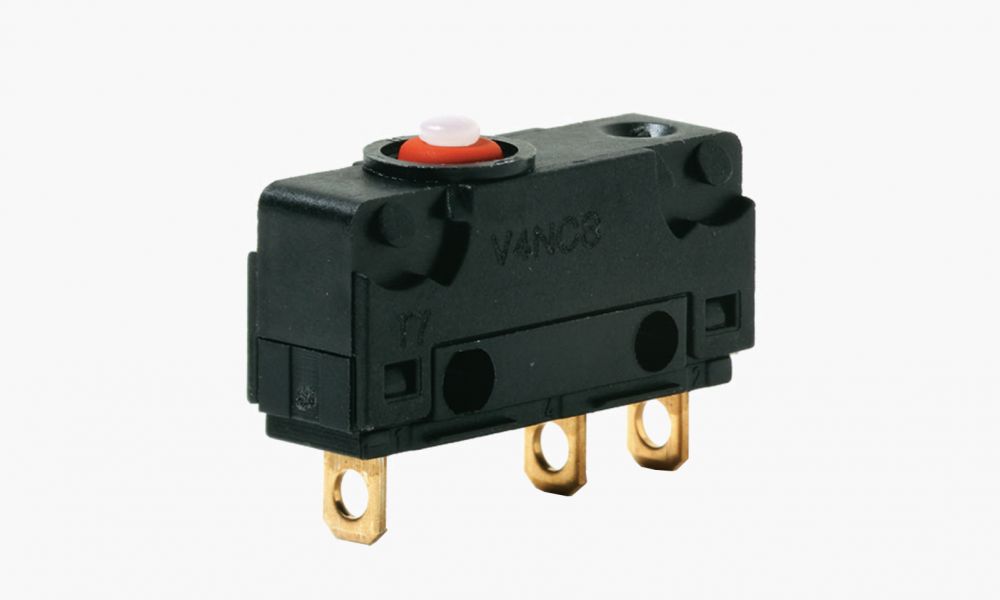

V4NC/V4NCE Mikroschalter

V4N Datenblatt download

Bestellschlüssel

Hebelvarianten

Gerader Hebel A1, 18 mm lang

Gerader Hebel A2, 25 mm lang

Gerader Hebel A3, 32 mm lang

Gerader Hebel A7, 60 mm lang

C-Hebel AC1, 18,5 mm lang

Rollen-Hebel AR1, 16 mm lang

Rollen-Hebel AR2, 17,9 mm lang

Gerader Hebel Y1, 18 mm lang

Gerader Hebel Y2, 25 mm lang

Gerader Hebel Y3, 32 mm lang

Gerader Hebel Y7, 60 mm lang

C-Hebel YC, 18,5 mm lang

Rollen-Hebel YR1, 16 mm lang

Sie können die nachfolgenden Schaltervarianten bei uns anfragen / bestellen.

Schicken Sie uns dazu eine Mail

per E-Mail anfragen

Folgende Varianten V4NC sind bestellbar

Betätigung	Schalterbezeichnung	Schemabild
Stößel	V4NCT7 V4NCT7AUX V4NCT7X V4NCT7GP V4NCT7G V4NCT8AUX V4NCT8X V4NCT9
Gerader Hebel A1, 18,0 mm	V4NCT7A1 V4NCT7A1-AUX V4NCT7A1-X V4NCT7A1-GP V4NCT7A1-G V4NCT8A1-AUX V4NCT8A1-X V4NCT9A1
Gerader Hebel A2, 25,0 mm	V4NCT7A2 V4NCT7A2-AUX V4NCT7A2-X V4NCT7A2-GP V4NCT7A2-G V4NCT8A2-AUX V4NCT8A2-X V4NCT9A2
Gerader Hebel A3, 32,0 mm	V4NCT7A3 V4NCT7A3-AUX V4NCT7A3-X V4NCT7A3-GP V4NCT7A3-G V4NCT8A3-AUX V4NCT8A3-X V4NCT9A3
Gerader Hebel A7, 60,0 mm	V4NCT7A7 V4NCT7A7-AUX V4NCT7A7-X V4NCT7A7-GP V4NCT7A7-G V4NCT8A7-AUX V4NCT8A7-X V4NCT9A7
C-Hebel AC1, 18,5 mm	V4NCT7AC1 V4NCT7AC1-AUX V4NCT7AC1-X V4NCT7AC1-GP V4NCT7AC1-G V4NCT8AC1-AUX V4NCT8AC1-X V4NCT9AC1
Rollen-Hebel AR, 16,0 mm	V4NCT7AR V4NCT7AR-AUX V4NCT7AR-X V4NCT7AR-GP V4NCT7AR-G V4NCT8AR-AUX V4NCT8AR-X V4NCT9AR
Rollen-Hebel AR1, 16,0 mm	V4NCT7AR1 V4NCT7AR1-AUX V4NCT7AR1-X V4NCT7AR1-GP V4NCT7AR1-G V4NCT8AR1-AUX V4NCT8AR1-X V4NCT9AR1
Rollen-Hebel AR2, 17,9 mm	V4NCT7AR2 V4NCT7AR2-AUX V4NCT7AR2-X V4NCT7AR2-GP V4NCT7AR2-G V4NCT8AR2-AUX V4NCT8AR2-X V4NCT9AR2
Gerader Hebel Y1, 18,0 mm	V4NCT7Y1 V4NCT7Y1-AUX V4NCT7Y1-X V4NCT7Y1-GP V4NCT7Y1-G V4NCT8Y1-AUX V4NCT8Y1-X V4NCT9Y1
Gerader Hebel Y2, 25,0 mm	V4NCT7Y2 V4NCT7Y2-AUX V4NCT7Y2-X V4NCT7Y2-GP V4NCT7Y2-G V4NCT8Y2-AUX V4NCT8Y2-X V4NCT9Y2
Gerader Hebel Y3, 32,0 mm	V4NCT7Y3 V4NCT7Y3-AUX V4NCT7Y3-X V4NCT7Y3-GP V4NCT7Y3-G V4NCT8Y3-AUX V4NCT8Y3-X V4NCT9Y3
Gerader Hebel Y7, 60,0 mm	V4NCT7Y7 V4NCT7Y7-AUX V4NCT7Y7-X V4NCT7Y7-GP V4NCT7Y7-G V4NCT8Y7-AUX V4NCT8Y7-X V4NCT9Y7
C-Hebel YC1, 18,5 mm	V4NCT7YC V4NCT7YC-AUX V4NCT7YC-X V4NCT7YC-GP V4NCT7YC-G V4NCT8YC-AUX V4NCT8YC-X V4NCT9YC
Rollen-Hebel YR1, 16,0 mm	V4NCT7YR1 V4NCT7YR1-AUX V4NCT7YR1-X V4NCT7YR1-GP V4NCT7YR1-G V4NCT8YR1-AUX V4NCT8YR1-X V4NCT9YR1

Folgende Varianten V4NCE sind bestellbar

Betätigung	Schalterbezeichnung	Schemabild
Stößel	V4NCET840C4
Gerader Hebel A1, 18,0 mm	V4NCET840C4A1
C-Hebel AC1, 18,5 mm	V4NCET840C4AC1
Rollen-Hebel AR1, 16,0 mm	V4NCET840C4AR1

Folgende Varianten V4N-UL sind bestellbar

Betätigung	Schalterbezeichnung	Schemabild
Stößel	V4NT7UL V4NT7GPUL V4NT7GUL V4NT850UL V4NT850GPUL V4NT850GUL V4DT85/3113UL
Gerader Hebel A1, 18,0 mm	V4NT7A1-UL V4NT7A1-GP-UL V4NT7A1-G-UL V4NT850A1-UL V4NT850A1-GP-UL V4NT850A1-G-UL V4DT85A1/3113UL
Gerader Hebel A2, 25,0 mm	V4NT7A2-UL V4NT7A2-GP-UL V4NT7A2-G-UL V4NT850A2-UL V4NT850A2-GP-UL V4NT850A2-G-UL V4DT85A2/3113UL
Gerader Hebel A3, 32,0 mm	V4NT7A3-UL V4NT7A3-GP-UL V4NT7A3-G-UL V4NT850A3-UL V4NT850A3-GP-UL V4NT850A3-G-UL V4DT85A3/3113UL
Gerader Hebel A7, 60,0 mm	V4NT7A7-UL V4NT7A7-GP-UL V4NT7A7-G-UL V4NT850A7-UL V4NT850A7-GP-UL V4NT850A7-G-UL V4DT85A7/3113UL
C-Hebel AC1, 18,5 mm	V4NT7AC1-UL V4NT7AC1-GP-UL V4NT7AC1-G-UL V4NT850AC1-UL V4NT850AC1-GP-UL V4NT850AC1-G-UL V4DT85AC1/3113UL
Rollen-Hebel AR, 16,0 mm	V4NT7AR-UL V4NT7AR-GP-UL V4NT7AR-G-UL V4NT850AR-UL V4NT850AR-GP-UL V4NT850AR-G-UL V4DT85AR/3113UL
Rollen-Hebel AR1, 16,0 mm	V4NT7AR1-UL V4NT7AR1-GP-UL V4NT7AR1-G-UL V4NT850AR1-UL V4NT850AR1-GP-UL V4NT850AR1-G-UL V4DT85AR1/3113UL
Rollen-Hebel AR2, 17,9 mm	V4NT7AR2-UL V4NT7AR2-GP-UL V4NT7AR2-G-UL V4NT850AR2-UL V4NT850AR2-GP-UL V4NT850AR2-G-UL V4DT85AR2/3113UL
Gerader Hebel Y1, 18,0 mm	V4NT7Y1-UL V4NT7Y1-GP-UL V4NT7Y1-G-UL V4NT850Y1-UL V4NT850Y1-GP-UL V4NT850Y1-G-UL V4DT85Y1/3113UL
Gerader Hebel Y2, 25,0 mm	V4NT7Y2-UL V4NT7Y2-GP-UL V4NT7Y2-G-UL V4NT850Y2-UL V4NT850Y2-GP-UL V4NT850Y2-G-UL V4DT85Y2/3113UL
Gerader Hebel Y3, 32,0 mm	V4NT7Y3-UL V4NT7Y3-GP-UL V4NT7Y3-G-UL V4NT850Y3-UL V4NT850Y3-GP-UL V4NT850Y3-G-UL V4DT85Y3/3113UL
Gerader Hebel Y7, 60,0 mm	V4NT7Y7-UL V4NT7Y7-GP-UL V4NT7Y7-G-UL V4NT850Y7-UL V4NT850Y7-GP-UL V4NT850Y7-G-UL V4DT85Y7/3113UL
C-Hebel YC1, 18,5 mm	V4NT7YC-UL V4NT7YC-GP-UL V4NT7YC-G-UL V4NT850YC-UL V4NT850YC-GP-UL V4NT850YC-G-UL V4DT85YC/3113UL
Rollen-Hebel YR1, 16,0 mm	V4NT7YR1-UL V4NT7YR1-GP-UL V4NT7YR1-G-UL V4NT850YR1-UL V4NT850YR1-GP-UL V4NT850YR1-G-UL V4DT85YR1/3113UL
