Microswitch V4NCS

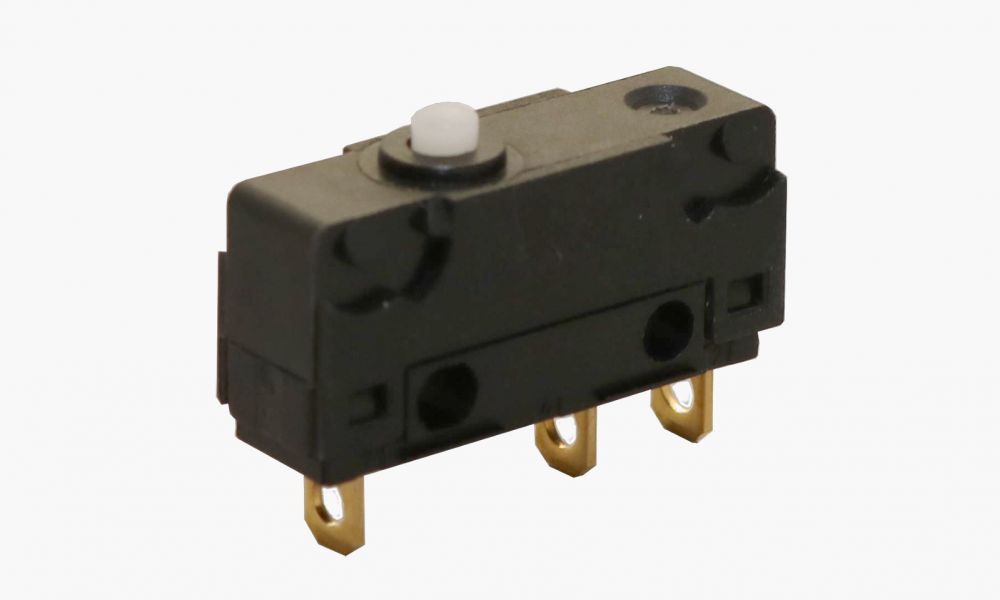

Microswitch V4NCS of Johnson Electric, brand saia-burgess.
These microswitches are widely used in automated industry and automotive industry: small size, high electrical and mechanical life, sealed, customer specific connection methods.
V4NCS microswitches offer the following features:
- Sealed acc. to IP67 (DIN EN 60529)
- faston, solder and PCB terminals, prewired option
- Subminiature dimensions: 20 × 10,3 × 6,4 mm
- Electrical rating: 12-30VDC, 5 A / 250 VAC, 5 A
- Operating position 8,4 ± 0,3 mm (datum = mounting holes centre)
- Operating force 2,5 N max.
- Actuation: plunger, plain lever, cam follower lever (also customer specific possible)
- Temperature range -40°C to +85°C
- Switching function CO, NO, NC (change over, normally open, normally closed)
- Mechanical life min. 3 x 10 e6 cycles (impact free actuation)
- Approved to Automotive Standard
Further details: https://www.johnsonelectric.com/en/products/switches-and-relays/microswitches-and-switches-assembly
Data sheet
All technical details, specifications, and dimensional drawings can be found in the corresponding data sheet.
Data sheet UL
All technical details, specifications, and dimensional drawings can be found in the corresponding data sheet.
Lever variants
Plain lever A1
18 mm long
Plain lever A2
25 mm long
Plain lever A3
32 mm long
Plain lever A7
60 mm long
Plain lever Y1
18 mm long
Plain lever Y2
25 mm long
Plain lever Y3
32 mm long
Plain lever Y7
60 mm long
Cam follower lever AC1
18,5 mm long
Cam follower lever YC
18,5 mm long
Roller lever YR1
16 mm long
Roller lever AR1
16 mm long
Roller lever AR2
17,9 mm long
