Standard microswitch

Microswitch SI2010

  • Fast delivery
  • Reliable shipping
  • Variable quantities
Request by email

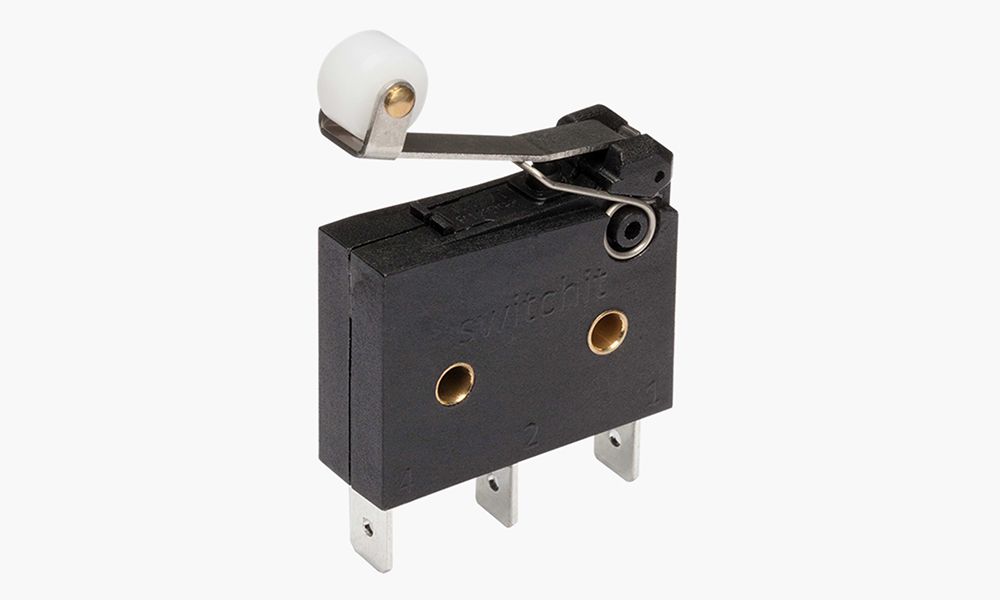

Microswitch SI2010

Microswitch SI2010 is developed by switch-it. Mounting dimensions of SI2010 are compatible with the Hartmann series 107 and 164.
These microswitches are widely used in automated industry, vehicel construction, systems and apparatus construction: precise switching system, high vibration and shock resistance, high electrical and mechanical life, sealed, customer specific connection methods.

Microswitches SI2010 offer the following features:

  • Sealed acc. to IP67 (DIN EN 60529)
  • Faston terminals, , prewired option
  • Dimensions 25 x 33 x 11 mm
  • Electrical rating 250VAC, 3A
  • Operating position 17,05 ± 0,25 mm (datum = middle of mounting holes)
  • Actuation:  plunger, plain lever, cam follower lever (also customer specific possible)
  • Temperature range  -40°C to +85°C
  • Switching function CO, NO, NC (change over, normally open, normally closed)
  • Mechanical life min. 10 e6 cycles (impact free actuation)

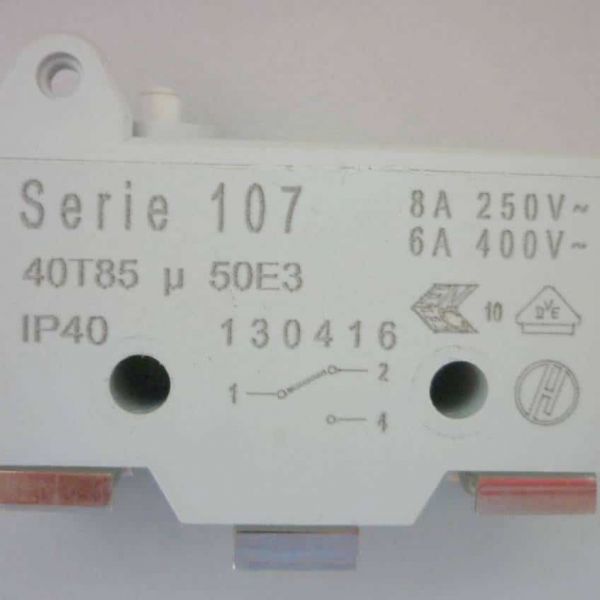

Hartmann microswitch series 107

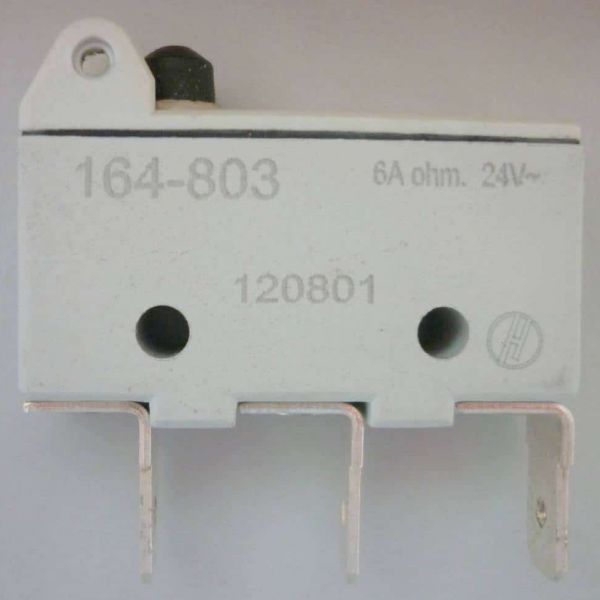

Hartmann microswitch series 164

SI2010 switch is corresponding / compatible in mounting dimensions to Hartmann microswitch series 107 and 164.

SI2010 is available in two different housing variants, and also optional with a wide variety of standard levers. Wire and cable outlet: you can choose left or right hand side, or to bottom side. Alternatively Version B2 offers 6,3 x 0,8 mm Faston Terminals. The mounting holes show additional brass sleeves, thus enabling otimum tightening torque.

Lever variants

Plain lever Y 33,5

33,5 mm lang

Plain lever Y 52

52 mm long

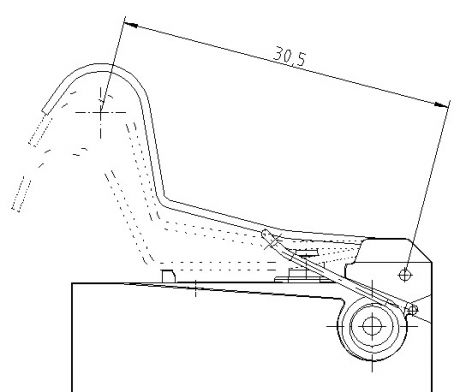

Cam follower lever YC

30,5 mm long

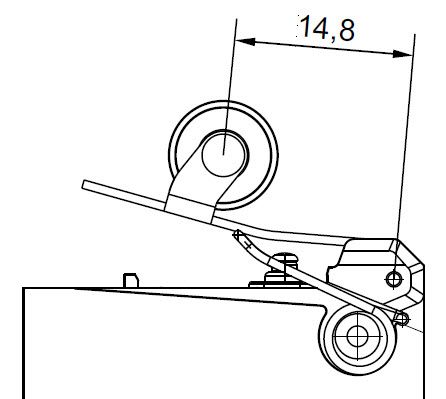

Roller lever YR 14,8

14,8 mm long

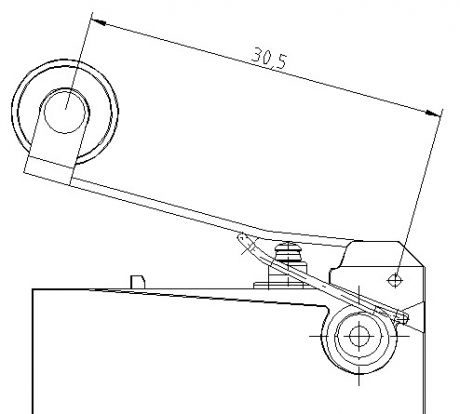

Roller lever YR 30,5

30,5 mm long

SI2010-B1 switch variants

Wires FLRY-0,5mm2, COM = bk, C4 = bl, C2 = gr Standard length of wires = 1m (you can request for other length, other colours) All switches can be supplied with cable instead of wires – please request.

Plunger

SI2010-B2 switch variants

Wires FLRY-0,5mm2, COM = bk, C4 = bl, C2 = gr Standard length of wires = 1m (you can request for other length, other colours) All switches can be supplied with cable instead of wires – please request. All switches are available with additional special levers – please request.

Plunger

Lever Y 33,5

Lever Y 52

Lever YC 30,5

Lever YR 14,8

Lever YR 30,5
