V4L/S microswitch

V4l/S datasheet download

Characteristics V4LS microswich:

Sealed to protection class IP40 or IP6k7
Solder terminals, pre-wired option
Long overtravel min. 2,2 mm

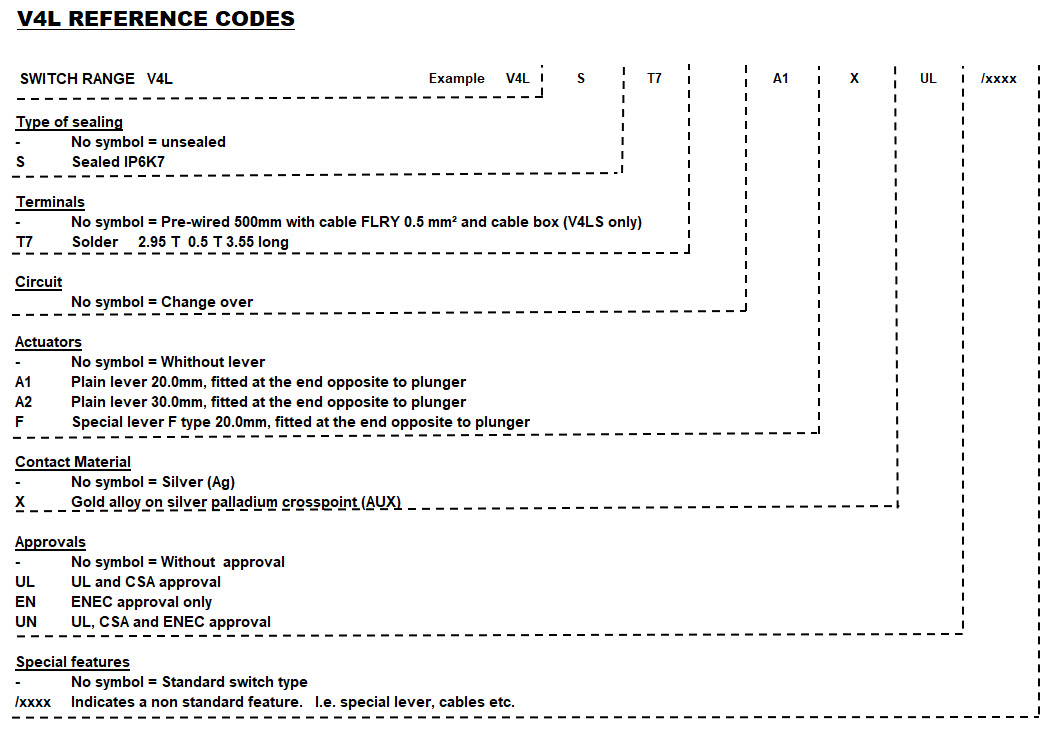

Ordering reference

Lever variants

Plain lever A1, 20 mm long

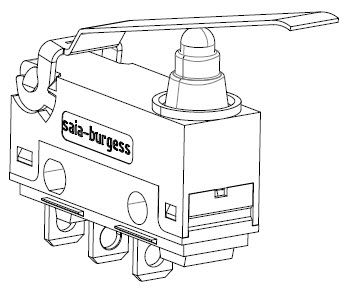

Plain lever A2, 30 mm long

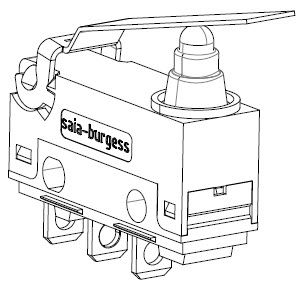

Plain lever A3, 22,8 mm long

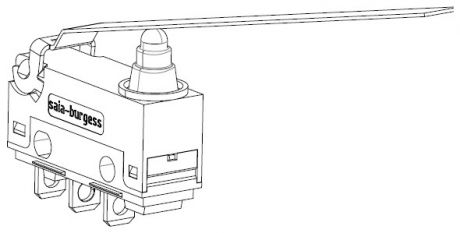

Plain lever A7, 51,4 mm long

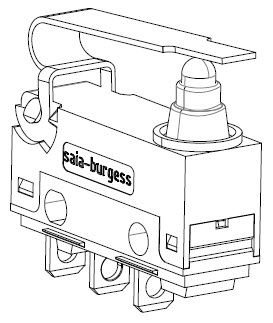

Special lever form F, 20 long

You can request / order the following switch variants from us.

Please send us an E-Mail

INQUIRE BY E-MAIL

The following variants V4L/S can be ordered

ActuatorArticle nameImage
PlungerV4LT7
V4LST7
V4LST7AUX
V4LST7X
V4LST8
plain lever A1, 20,0 mm
V4LT7A1
V4LST7A1
V4LST7A1-AUX
V4LST7A1-X
V4LST8A1
plain lever A2, 30,0 mmV4LT7A2
V4LST7A2
V4LST7A2-AUX
V4LST7A2-X
V4LST8A2
plain lever A3, 22,8 mmV4LT7A3
V4LST7A3
V4LST7A3-AUX
V4LST7A3-X
V4LST8A3
plain lever A7, 51,4 mmV4LT7A7
V4LST7A7
V4LST7A7-AUX
V4LST7A7-X
V4LST8A7
cam follower lever AC1, 25,0 mmV4LT7AC1
V4LST7AC1
V4LST7AC1-AUX
V4LST7AC1-X
V4LST8AC1
special lever F type 20,0 mmV4LT7F
V4LST7F
V4LST7F-AUX
V4LST7F-X
V4LST8F

The following variants V4L/S-UL can be ordered

ActuatorArticle nameImage

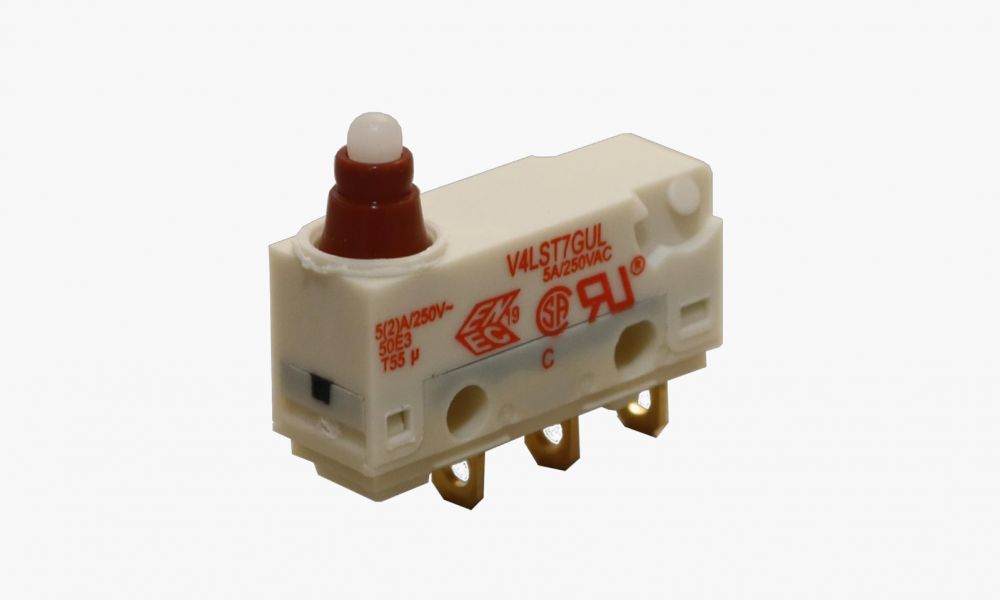

PlungerV4LST7UL
V4LST7GPUL/ENEC
V4LST7GUL/ENEC
plain lever A1, 20,0 mm
V4LST7A1-UL
V4LST7A1-GP-UL/ENEC
V4LST7A1-G-UL/ENEC
plain lever A2, 30,0 mmV4LST7A2-UL
V4LST7A2-GP-UL/ENEC
V4LST7A2-G-UL/ENEC
plain lever A3, 22,8 mmV4LST7A3-UL
V4LST7A3-GP-UL/ENEC
V4LST7A3-G-UL/ENEC
plain lever A7, 51,4 mmV4LST7A7-UL
V4LST7A7-GP-UL/ENEC
V4LST7A7-G-UL/ENEC
cam follower lever AC1, 25,0 mmV4LST7AC1-UL
V4LST7AC1-GP-UL/ENEC
V4LST7AC1-G-UL/ENEC
special lever F type 20,0 mmV4LST7F-UL
V4LST7F-GP-UL/ENEC
V4LST7F-G-UL/ENEC
