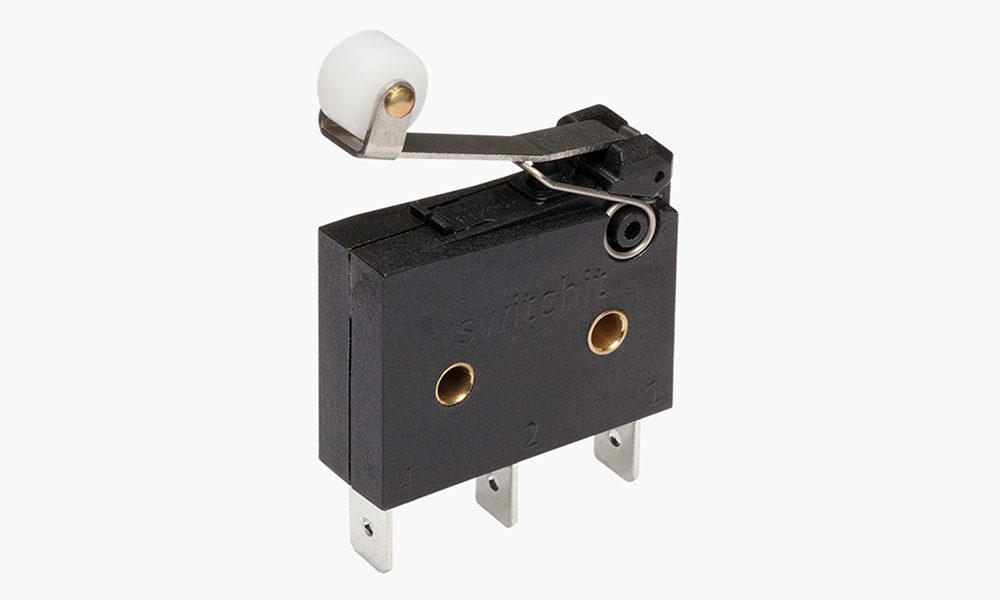

Microswitch SI2010

Microswitch SI2010 is developed by switch-it.
Mounting dimensions of SI2010 are compatible with the Hartmann series 107 and 164.
These microswitches are widely used in automated industry, vehicel construction, systems and apparatus construction: precise switching system, high vibration and shock resistance, high electrical and mechanical life, sealed, customer specific connection methods.

Microswitches SI2010 offer the following features:
Sealed acc. to IP67 (DIN EN 60529)
Faston terminals, , prewired option
Dimensions 25 x 33 x 11 mm
Electrical rating 250VAC, 3A
Operating position 17,05 ± 0,25 mm (datum = middle of mounting holes)
Actuation:  plunger, plain lever, cam follower lever (also customer specific possible)
Temperature range  -40°C to +85°C
Switching function CO, NO, NC (change over, normally open, normally closed)
Mechanical life min. 10 e6 cycles (impact free actuation)

SI2010 switch is corresponding / compatible in mounting dimensions to Hartmann microswitch series 107 and 164.

SI2010 is available in two different housing variants, and also optional with a wide variety of standard levers.

Wire and cable outlet: you can choose left or right hand side, or to bottom side.
Alternatively Version B2 offers 6,3 x 0,8 mm Faston Terminals.
The mounting holes show additional brass sleeves, thus enabling otimum tightening torque.

1004-302   1004-303  1004-304  1004-328
107-002  107-003  107-022  107-025  107-084  107-102  107-111  107-131  107-256  107-263  107-265  107-309  107-392  107-404  107-503
120-0006-000
164-016  164-024  164-025  164-182  164-503  164-574  164-737  164-797  164-802  164-803  164-828  164-849
191-051  621-001  714-1001-001  714-1001-014  714-1002-301

Hartmann microswitch series 107

Hartmann microswitch series 164

Lever variants

plain lever Y 33,5, 33,5 mm long

plain lever Y 52, 52 mm long

cam follower lever YC, 30,5 mm long

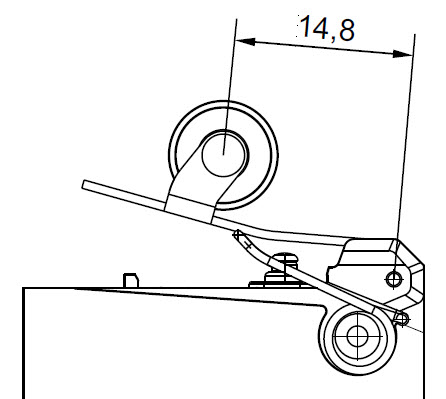

roller lever YR 14,8, 14,8 mm long

roller lever YR 30,5, 30,5 mm long

You can inquire / order the following SI2010-B1 switch variants.

Please send uas an email.

Wires FLRY-0,5mm2, COM = bk, C4 = bl, C2 = gr
Standard length of wires = 1m (you can request for other length, other colours)
All switches can be supplied with cable instead of wires – please request.

You can inquire / order the following SI2010-B2 switch variants.

Please send uas an email.

Wires FLRY-0,5mm2, COM = bk, C4 = bl, C2 = gr
Standard length of wires = 1m (you can request for other length, other colours)
All switches can be supplied with cable instead of wires – please request.
All switches are available with additional special levers – please request.
