Subminiature Microswitch

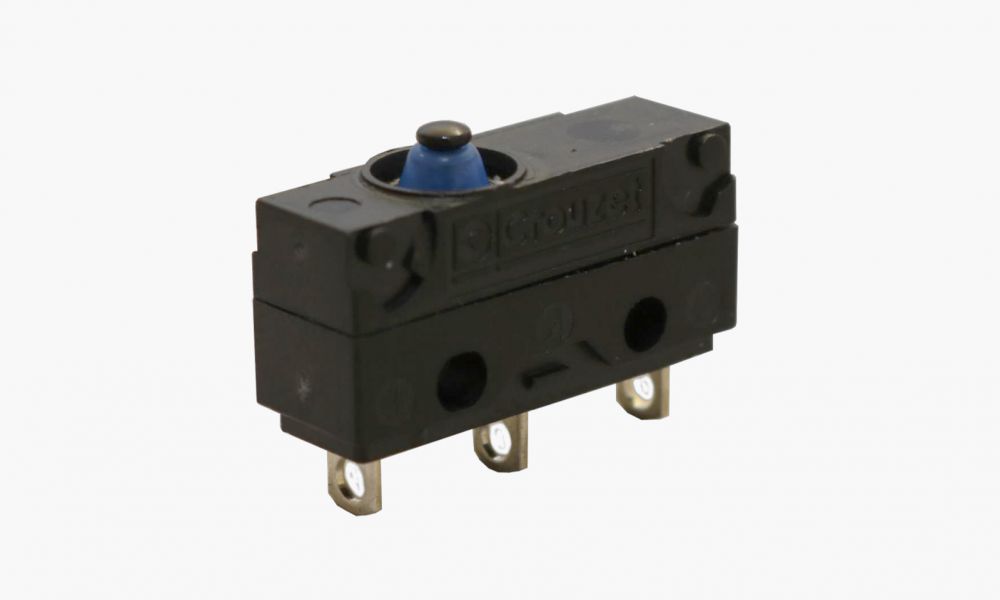

Microswitch V4S

Request by email

Characteristics

Environmental protection IP67 (sealed)
Solder-, faston- and PCB-terminals
Pre-wired option
Electrical ratings

250VAC, max. 12,5A
Range of temperature

-40°C to +125°C (+105°C pre-wired)
Circuit

CO, NC, NO
Contact material

Silver, silver gold-plated, gold crosspoint
Mechanical life

Min. 2×10⁶ cycles (impact free actuation)
Dimension

19,9 x 15 x 6,4mm
Actuator

Plunger, lever
Approvals

UL, CSA

All technical details, specifications, and dimensional drawings can be found in the corresponding data sheet.
